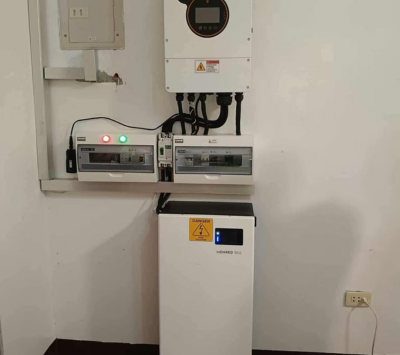

A residential solar energy system integrates one Menred ESS LFP.1433.F unit, rated at 14.33kWh, paired directly with one SRNE hybrid inverter. This 1:1 architecture simplifies system design and reduces potential points of failure, making it suitable for homes seeking straightforward energy storage without complex wiring or control layers.
The LFP.1433.F is built with LiFePO₄ cells rated for over 6,000 cycles at 0.5C and 25°C with 80% depth of discharge. Its nominal voltage is 51.2Vdc, operating within a range of 44.8–57.6Vdc, compatible with standard hybrid inverters up to 8,000W. Communication between the battery management system and the inverter is handled via CAN or RS485 protocol, selectable on the battery’s touchscreen interface.
The system includes Wi-Fi connectivity for remote monitoring through a mobile application, allowing users to track state of charge, voltage, current, and cycle count. An optional LED display provides local status visibility. The unit weighs 115kg and measures 900×400×260mm, designed for floor or wall mounting in utility spaces.
As a lithium battery solution, this setup supports daily self-consumption and backup power for essential loads — lighting, refrigeration, and small appliances — throughout the evening. It can be expanded later by connecting up to 16 units in parallel, reaching a total capacity of 229.29kWh.
Standard warranty is 5 years, with a 10-year option available.
