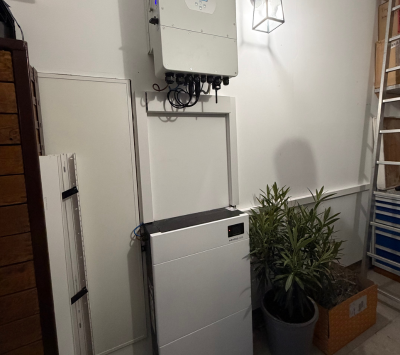

A residential solar energy system integrates one Menred ESS LFP.6144.G2 unit, configured with two 6.144kWh battery modules for a total energy capacity of 12.28kWh (11.66kWh usable at 95% depth of discharge), paired directly with one Deye hybrid inverter.
The system includes one G2 centralized control box and two battery packs, forming a unified 51.2Vdc storage bank. It supports a maximum continuous charge/discharge current of 300A and is compatible with inverters up to 15kW — exceeding the 12kW requirement for most hybrid systems.
The battery uses cobalt-free LiFePO₄ cells, rated for ≥6,000 cycles at 0.5C and 25°C. Communication with the inverter is handled via CAN or Modbus protocol; the optional LCD touchscreen allows manual selection among 27 mainstream inverter brands, including Deye. Wi-Fi and Bluetooth enable remote monitoring of cell-level voltage, temperature, and state of health.
Dimensions are 600 × 1030 × 210 mm, weight 140kg. The design features hidden cable ports and modular stacking for simplified installation. As a lithium battery solution, it delivers reliable evening self-consumption and backup for essential home loads.
Standard warranty is 5 years, with a 10-year option. Up to four LFP.6144.G2 units can be paralleled, scaling to 49.12kWh.
